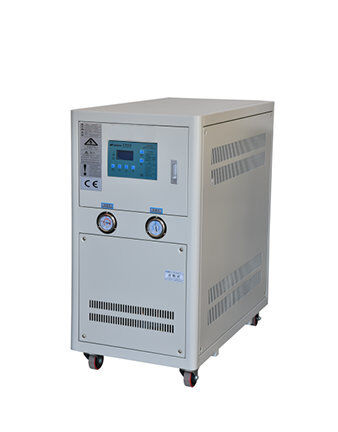

8 Ton Inverter Water Chiller industrial chiller machine
| Brand Name: | Coolpro |
| Model Number: | KWV-8 |
| MOQ: | 1 |
| Price: | Discuss |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
Inverter Water Chiller Inverter Compressor Chiller Variable-Speed Chiller Inverter Chiller Energy Saving
How does the inverter compressor work in industrial water chiller?
The inverter compressor uses a variable frequency drive to slow down or speed up the motor that rotates the compressor. Inverter chillers are able to match the varying load requirements to control running speed of the compressor's motor continuously. With this technology, the inverter chillers with outstanding part load and seasonal efficiency, with a great energy saving solution.
By using the inverter compressor solutions, significant energy savings can be achieved compared to traditional on-off compressors or mechanically-modulated technologies.
Inverter Chiller Specification
|
Item |
KWV-8 | |
| Nominal cooling capacity | Low frequency kcal/h | 5676 |
| High frequency kcal/h | 20434 | |
| Low frequency kw | 6.6 | |
| High frequency kw | 23.76 | |
| Input power | Low frequency kw | 2.86 |
| High frequency kw | 6.4 | |
| Power | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |
| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 1.36 | |
| High frequency power (kw) | 4.9 | |
| Condenser | Type | Shell and tube |
| Cooling water flow (m3/h) | 4.9 | |
| Inlet and outlet pipe caliber(inch) | 1-1/2 | |
| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 4.1 | |
| T | Tank volume(L) | 150 |
| Inlet and outlet pipe caliber(inch) | 1-1/2 | |
| Pump | Power (kw) | 1.5 |
| Lift(m) | 22 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 1320*710*1320 |
| Weight | kg | 300 |
Features and benefits of industrial inverter chiller
- High efficiency and energy saving: The full frequency conversion drive technology greatly improves the comprehensive performance (IPLV) of the unit, and saves 30% electricity compared with the fixed-frequency unit.
- Precise temperature control: The inverter chiller controlled temperature of the chilled water is within 0.1 ° C, which meets the requirements of high precision temperature control.
- Faster cooling speed: Compared with the fixed frequency chiller,the inverter chiller cooling time is increased by 50%.
- Long life of compressor: Frequency conversion compressor runs at low speed load most of the time, less wear.
- Small starting current: The inverter chiller starts at low frequency and low voltage, so the starting current is small and the interference to the power grid is small.
Chiller service
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
How to select the model of the chiller ?
- We need to know the heat load of your process or chiller cooling capacity.
- Required water temperature, water pressure and flow rate.
- Application and power supply in local.
- Max. Ambient temperature in summer day
- Customized special specifications are acceptable. Contact us for more chiller specification.We have a professional team to provide you with the best solution.
